Vortex TSDB: Live Metrics in One Command — HTTP Writes, Minute Aggregates, Sliding Windows, Replicated in Memory

1. Overview

Lightweight. Replicated. Real-time.

Vortex TSDB is a distributed time series database for live metrics. Push numbers over HTTP; read per-minute aggregates, instant values and tumbling or sliding windows. Every node holds the whole dataset in memory.

Version Images (amd64 · arm64) Source License
1.0.0 fredfeng033/vortex-tsdb · ghcr.io/paganini2008/vortex-tsdb GitHub Apache 2.0

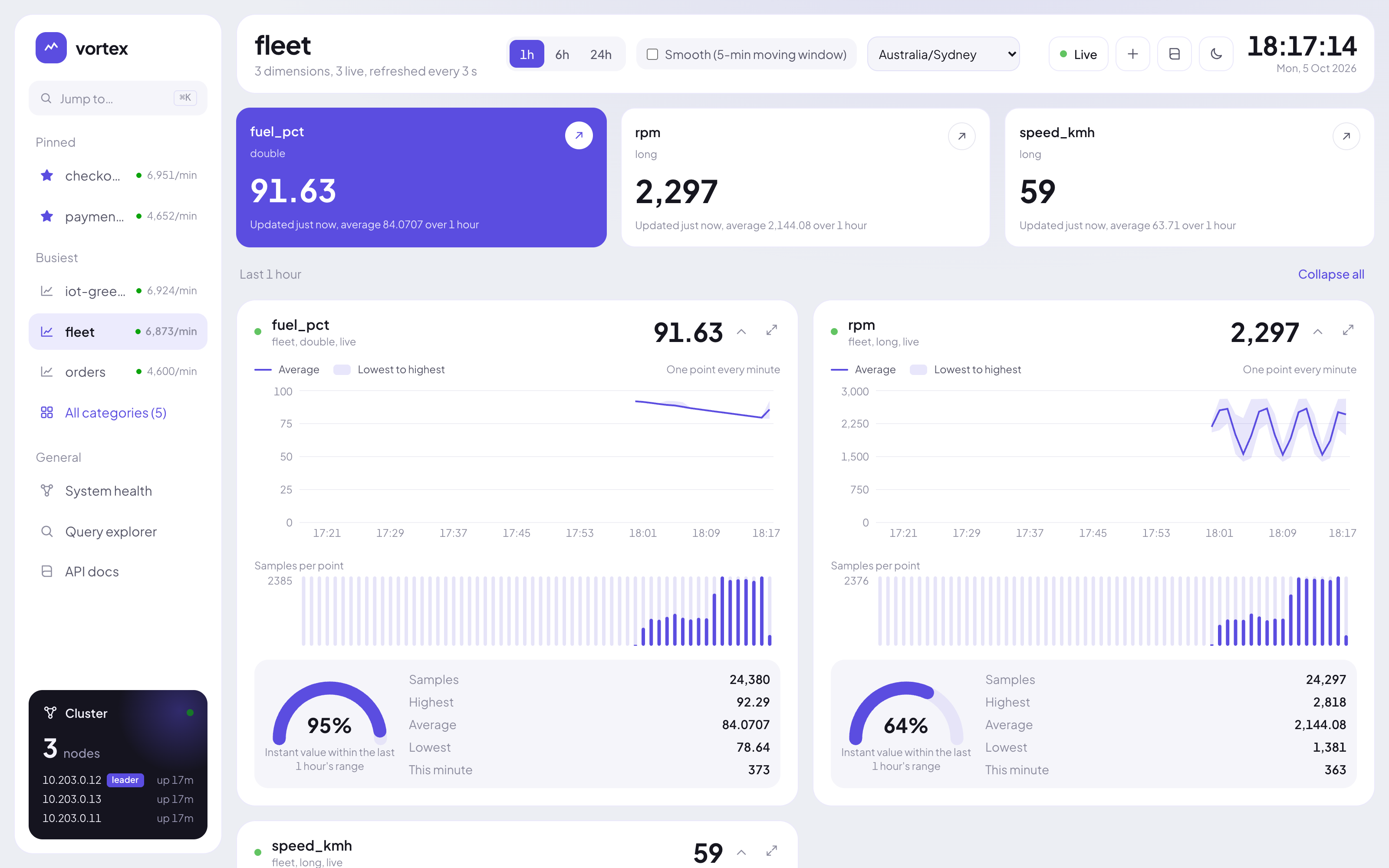

Vortex TSDB web console

2. What Problem Does It Solve?

Live metrics — devices online, API QPS, orders, temperatures — need exact counts from many writers, aggregation by the minute and over any window, and a service that survives a dead node. General-purpose TSDBs do this with a disk engine, a query language and several components; Vortex does only this layer, in memory, behind plain HTTP.

Pain Vortex
Many components to deploy and run One service + optional Redis; docker compose up -d
Counts drift under concurrent writers Writes serialised on the leader, then replicated: exact, no locks
Windows need tables or a query language range · step · window · z, folded at read time
One node down, service down Full replica on every node; new leader in ~5 s
Memory grows with every series Per-node key limit; overflow to Redis

3. Quick Start

Free on Docker Hub and GHCR · linux/amd64 + linux/arm64 · no JDK, Node or build needed

curl -fsSLO https://raw.githubusercontent.com/paganini2008/vortex/main/deploy/docker-compose.yml
docker compose up -d                     # 3 nodes + web console + gateway

curl -X POST 'http://localhost:9080/tsd/push?t=long&c=car&d=speed&v=44'
curl 'http://localhost:9080/tsd/last?t=long&c=car&d=speed'

{"code":1,"data":{"value":44,"timestamp":1791182928819},"elapsed":1,"msg":"ok","requestPath":"/tsd/last"}
Open URL
Web console http://localhost:9080/
Swagger UI http://localhost:9080/swagger-ui.html
Also Command
Pull docker pull fredfeng033/vortex-tsdb:latest · docker pull fredfeng033/vortex-tsdb-web:latest
GHCR docker pull ghcr.io/paganini2008/vortex-tsdb:latest · VORTEX_REGISTRY=ghcr.io/paganini2008 docker compose up -d
Your Redis VORTEX_REDIS_HOST=host.docker.internal VORTEX_REDIS_PASSWORD=secret docker compose up -d
From source git clone https://github.com/paganini2008/vortex.git && cd vortex && ./run-docker.sh

Nodes take 20–30 s to start; wait for (healthy) in docker compose ps.

4. Requirements

To You need
Run the images Docker with compose v2 (Docker Desktop, Rancher Desktop, OrbStack, Engine 23+)
Overflow (optional) Redis — tested with 7.4 and 8.6
Build from source JDK 17+, Maven 3.9, Node.js 20+
Stack Spring Boot 4.1 · openspreader · Next.js 16 · React 19 · Tailwind 4 · Traefik v3

5. How It Works

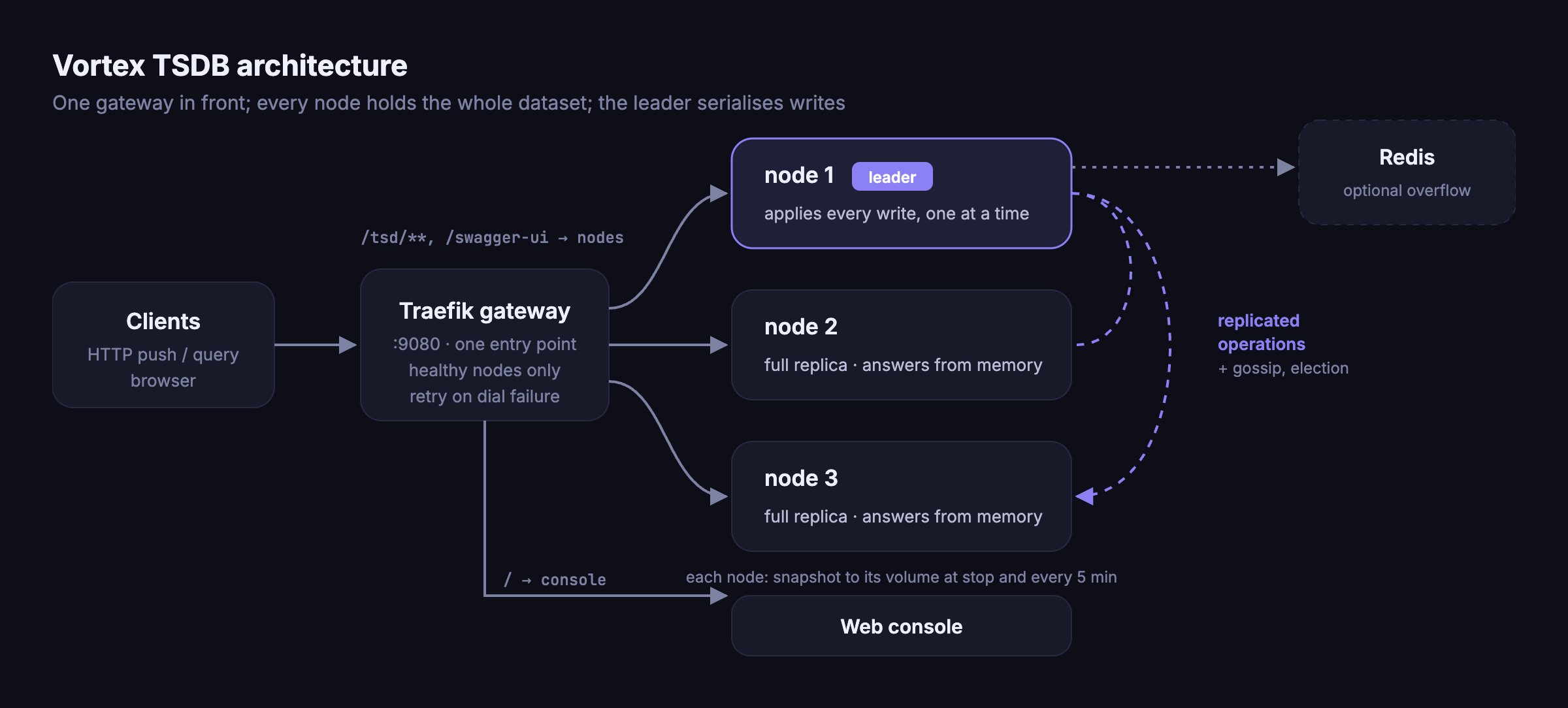

Architecture

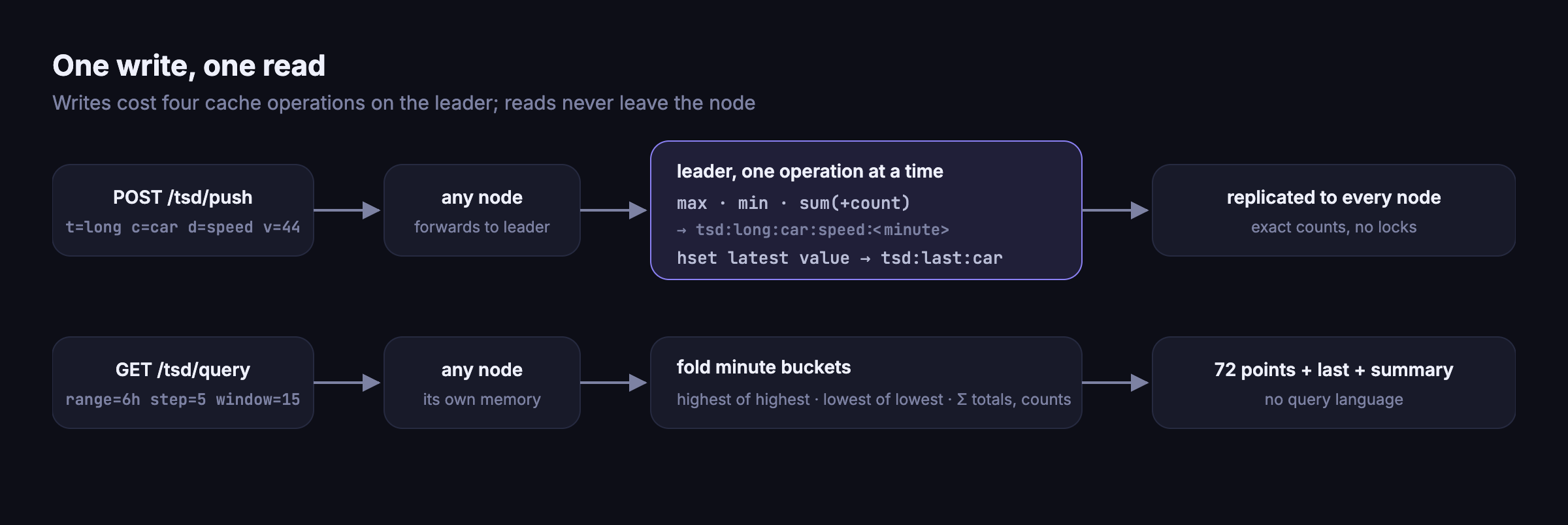

One write, one read

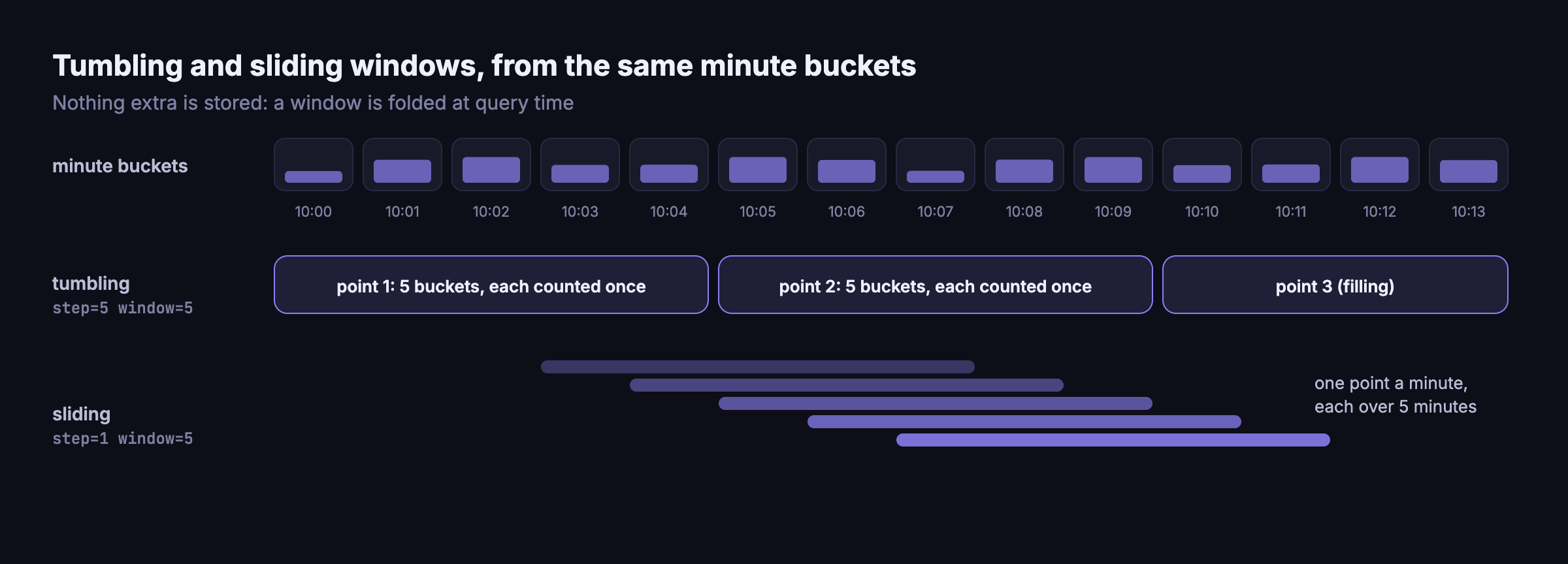

Tumbling and sliding windows

Data Key Structure
Minute bucket tsd:<type>:<category>:<dimension>:<minute> max · min · sum · count; retention as TTL
Latest value tsd:last:<category> Hash: a category in one read
Catalog tsd:catalog Sorted set by last sample
Health tsd:health Hash; each node every 5 s

6. Code Examples

Example 1 — push and read back


Input for v in 44 67 112; do curl -X POST "localhost:9080/tsd/push?t=long&c=car&d=speed&v=$v"; done then curl 'localhost:9080/tsd/retrieve?t=long&c=car&d=speed&z=Asia/Shanghai'
Execution Three samples land in one minute bucket; retrieve returns the latest 60 buckets in zone z
Output "09:29:00": {"count": 3, "highestValue": 112, "lowestValue": 44, "totalValue": 223, "averageValue": 74.3333}

Example 2 — a sliding window


Input curl 'localhost:9080/tsd/query?t=long&c=car&d=speed&range=6h&step=5&window=15'
Execution 72 points; each folds the 15 minute buckets before it. window = step gives tumbling windows
Output {"step": 5, "window": 15, "last": {"value": 61}, "summary": {"count": 21540, …}, "points": [{"from": …, "to": …, "count": 900, "averageValue": 69.8}, …]}

Query explorer

Example 3 — the whole cluster


Input curl 'localhost:9080/tsd/categories' · curl 'localhost:9080/tsd/health'
Execution Any node answers from replicated memory
Output Categories busiest first; per node QPS, error rate, cache, replication lag, JVM

System health

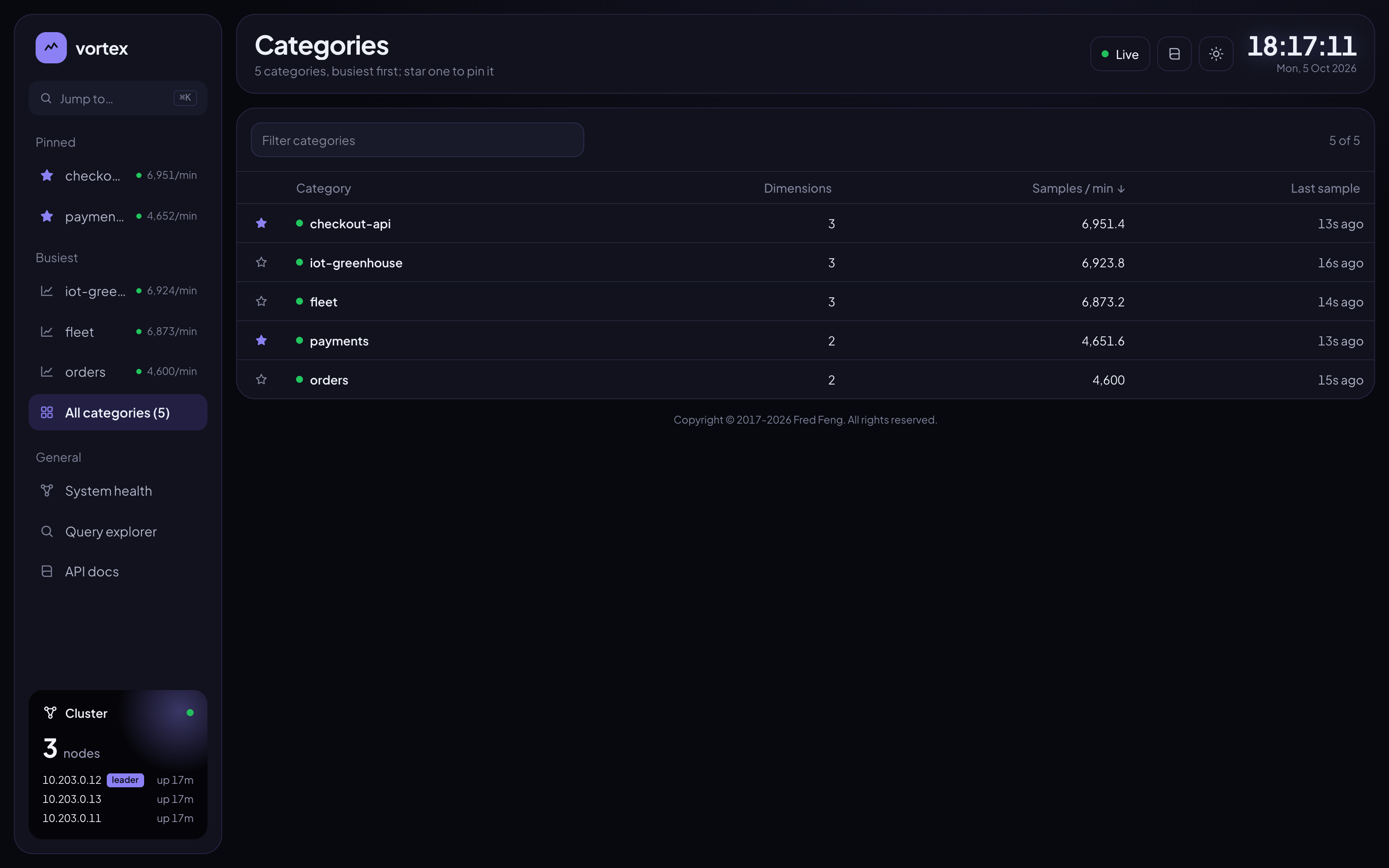

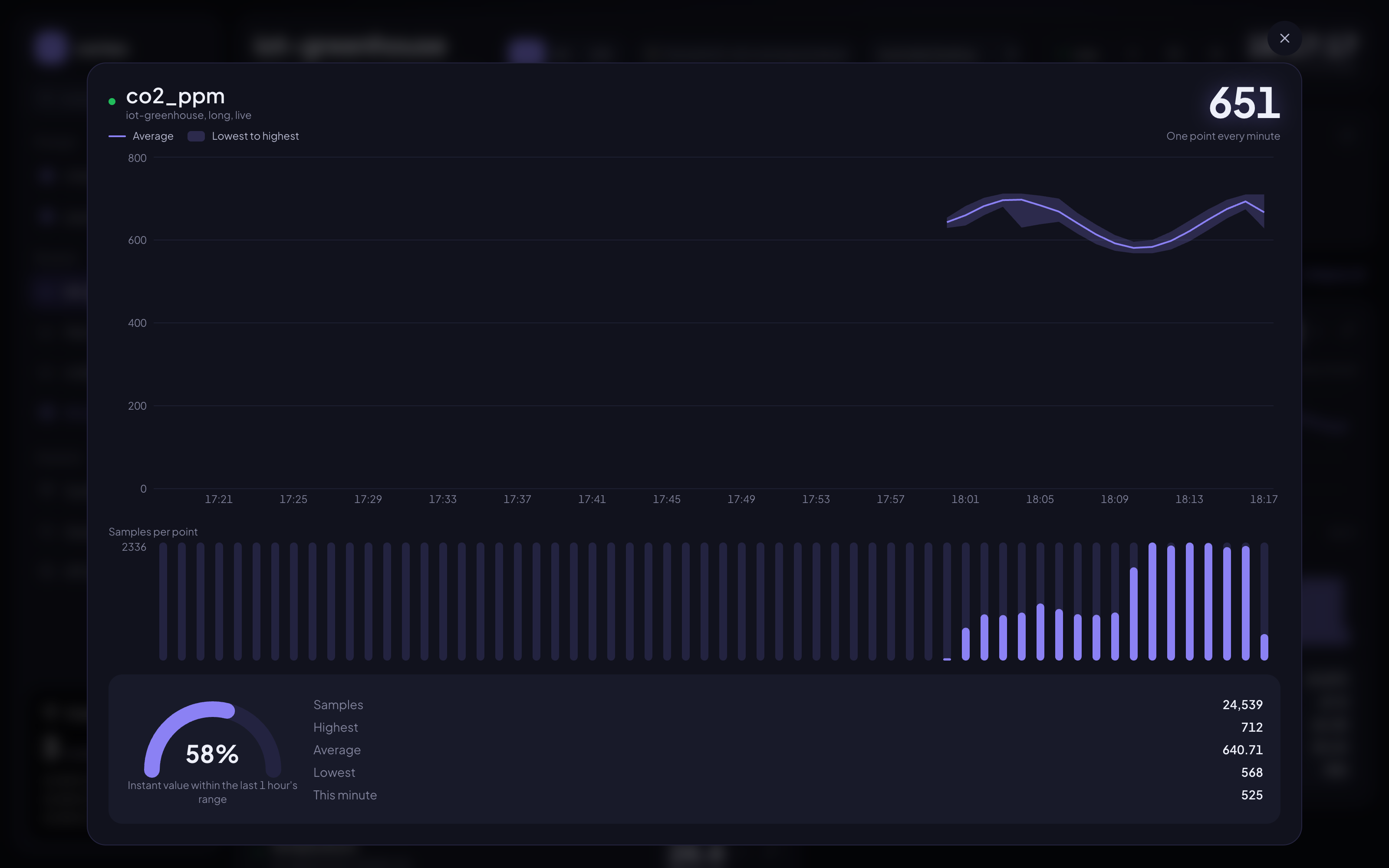

Categories Zoom Light theme

7. Configuration

Variable Default Description
VORTEX_RETENTION 24h How long data is kept
VORTEX_SPAN_MINUTES 1 Bucket width; must divide 60
VORTEX_TIME_ZONE UTC Zone when a request has no z
VORTEX_CACHE_MAX_KEYS 10000 Keys per node in memory
VORTEX_REDIS_HOST blank Overflow Redis; blank deletes keys beyond the limit
VORTEX_SNAPSHOT_INTERVAL 5m Snapshot interval
VORTEX_GATEWAY_PORT 9080 Host port

All settings: docs/configuration.md.

8. Performance & Comparison

Environment: Docker Desktop, 4 CPUs / 8 GB, 3 nodes, k6 through the gateway.

Scenario Result
826,781 writes at rising rates 0 failures, identical totals on all nodes
Sustained ~1,000 samples/s
Peak 1,400–1,500 samples/s, leader ~2.3 CPUs, heap ≤ 310 MB
kill -9 leader at 600/s new leader in 4.7 s, 0.28% of requests failed
Graceful leader stop immediate hand-over, 0 failures
  Vortex Prometheus InfluxDB TimescaleDB
Writes HTTP push pull HTTP push SQL
Queries HTTP params PromQL InfluxQL / SQL SQL
Storage memory + snapshots disk disk PostgreSQL
HA built in extra setup by edition PG tooling
Best for live metrics, days monitoring time series analytics

9. Limitations & Trade-offs

Limit Consequence
One leader applies every write ~1,000–1,500 samples/s; does not grow with nodes
Data in memory Every node killed at once → back to the last snapshot (≤ 5 min)
Async replication Writes in flight when the leader crashes fail; some may still be stored
Redis overflow Reads of spilled keys cost a network round trip
No query language, alerting, auth Keep it on a private network

Not for: ledgers that must never lose a record · months or years of retention · tens of thousands of writes per second.

10. Summary

  1. One command — docker compose up -d, images for amd64 and arm64.
  2. Just HTTP — push with t/c/d/v, query with range/step/window/z.
  3. Exact — leader-serialised writes, no drift, no locks.
  4. Local reads — every node a full replica.
  5. Windows for free — tumbling and sliding, folded from minute buckets.
  6. Self-healing — new leader in ~5 s; graceful stops unnoticed.
  7. Durable enough — snapshots at stop and every 5 minutes.
  8. Bounded — key limit per node, optional Redis overflow.
  9. Observable — /tsd/health and a web console out of the box.
  10. A clear niche — live metrics with days of retention.

GitHub: https://github.com/paganini2008/vortex · Website: https://paganini2008.github.io/vortex/
